Commercial and industrial catalytic gas sensors GYC1201

Catalytic combustion gas sensor

The sensor is a catalytic combustion gas sensor used in the industrial and commercial environment, which can detect a series of combustible gases, such as methane, propane, hydrogen, isobutane and toluene. Catalytic combustion sensor is to measure gas concentration by using the principle of catalytic combustion heat release. The sensor is composed of catalytic element and compensation element. When the catalytic element encounters a combustible gas, the resistance value increases and the output voltage increases, so that the concentration of the combustible gas is detected according to the change of the output voltage.

Message

Electrochemical Gas Sensor

Civil Electrochemical Gas Sensor Industrial Electrochemical Sensor

Catalytic Gas Sensor

Semiconductor Sensor

MEMS Sensor

Optical Sensor

Laser Sensor Infrared Sensor PID Sensor Dust Sensor

Sensor Module

Electrochemical gas sensor module Semiconductor sensor module Planar semiconductor sensor module Catalytic gas sensor module Optical sensor module Communication module Multi-in-one module Complete machine schem

Product Details

Structure

The schematic diagram is shown in Figure 1. The sensor still forms the core component of catalytic element D and compensation element C, in which the upper catalytic element is protected by the upper cap of the screen, and the lower end is led by the circuit and signal of four nickel tube pins.

Characteristics

Ø Fast response speed;

Ø Good linear relationship in the range of 0 ~ 60% LEL;

Ø Good output repeatability;

Ø Low sensitivity to alcohol;

Ø Have a variety of gas detection capabilities;

Ø Good anti-silicone steam capacity.

Application

The sensor is suitable for industrial and commercial combustible gas leakage alarm, gas concentration meter and combustible gas detector.Such as detection equipment.

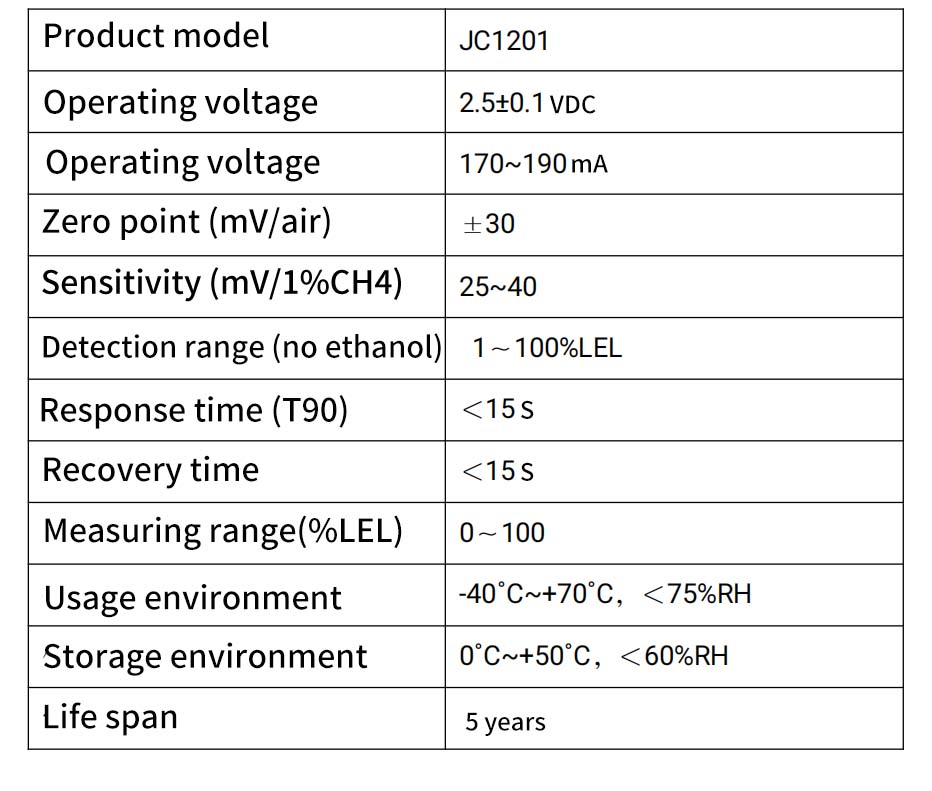

Technical Data
