Civil catalytic combustion gas sensor GYC1101-Desheng Xinneng

Civil catalytic combustion gas sensor GYC1101

The sensor is a catalytic combustion household gas sensor that detects flammable gases such as methane, propane and hydrogen.

Catalytic combustion sensor is the use of catalytic combustion heat release caused by the principle of resistance change to measure gas concentration, the sensor is composed of catalytic element and compensation element. When the catalytic element encounters combustible gas, the resistance value increases and the output voltage increases, so the concentration of combustible gas is detected according to the change of output voltage.

Message

Electrochemical Gas Sensor

Civil Electrochemical Gas Sensor Industrial Electrochemical Sensor

Catalytic Gas Sensor

Semiconductor Sensor

MEMS Sensor

Optical Sensor

Laser Sensor Infrared Sensor PID Sensor Dust Sensor

Sensor Module

Electrochemical gas sensor module Semiconductor sensor module Planar semiconductor sensor module Catalytic gas sensor module Optical sensor module Communication module Multi-in-one module Complete machine schem

Product Details

Structure

The sensor consists of a catalytic element D and a compensation element C forming the core assembly, where the upper end is protected by a wire mesh upper cap, and the lower end is led out by four nickel pins.

Characteristics

Ø Fast response speed;

Ø Good linear relationship in the range of 0 ~ 50% LEL;

Ø Good output repeatability;

Ø Low sensitivity to alcohol;

Ø Have a variety of gas detection capabilities;

Ø Good anti-silicone steam capacity.

Application

The sensor is suitable for household combustible gas leakage alarms, gas concentration meters, combustible gas detectors and other detection equipment.

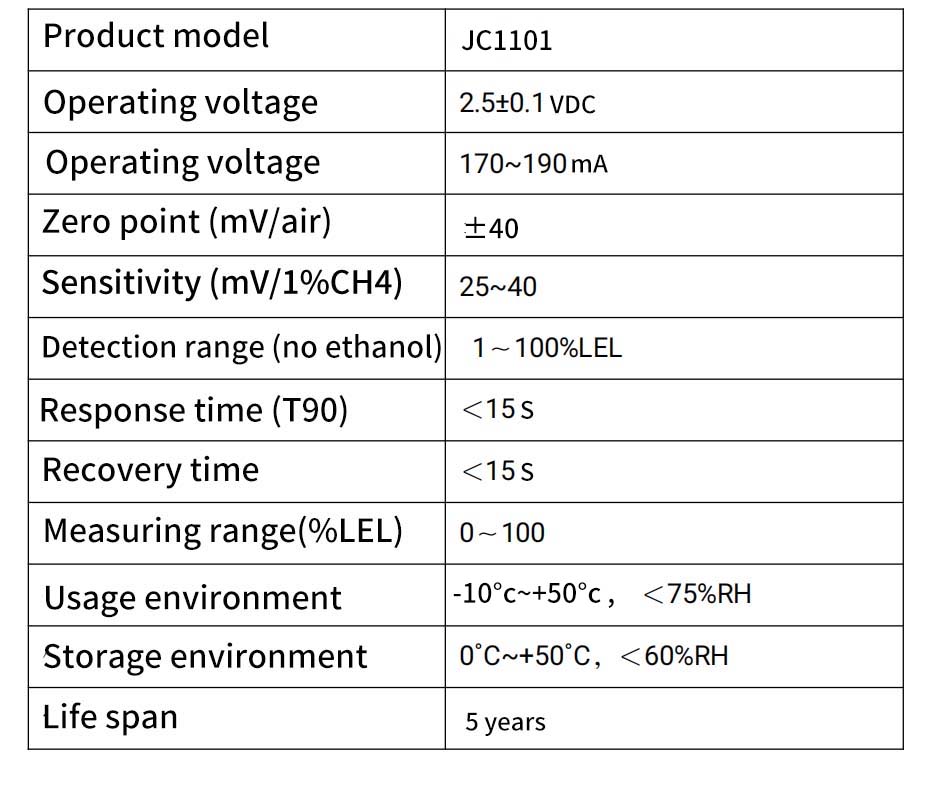

Technical Data
